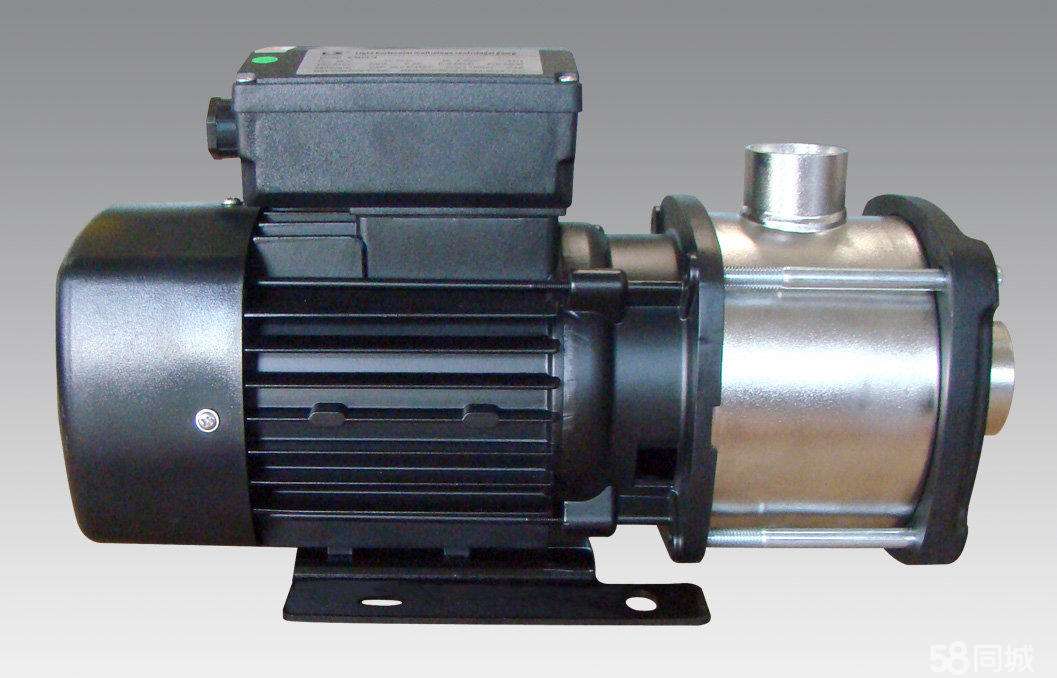

AWD Horizontal Multistage Centrifugal Pump

• The AWD is a non-self-priming horizontal multistage centrifugal pump featuring high efficiency, low noise, resistance to mild corrosion, compact structure and light weight.

• Pumps are axial suction and radial discharge with key flow components adopting stainless steel stamping and welding processes.

▍Application Scenarios

Horizontal multistage centrifugal pumps are suitable for transporting thin, clean, non-corrosive, non-flammable, non-explosive liquids that do not contain solid particles or fibers. It has a wide range of applications, including:

• Cooling systems;

• Air conditioning systems;

• Water treatment: purification of water;

• Industrial cleaning systems;

• Liquid transport, circulation, and boosting: for general liquid handling and movement;

• Hot and cold water;

• Food and beverage industry, pharmaceutical industry.

▍Technical Parameters

• Flow range: 0.4~28 m³/h

• Head range: 7.5~66.5 m

• Power range: 0.37~4 kW

• Maximum working pressure: 10 bar

▍Operating Conditions

Liquids: Thin, clean, non-corrosive, non-flammable, non-explosive, and free of solid particles and fibers. When the density of the liquid is greater than water, a higher power motor is required; for details, consult us please.

Liquid temperature range:

• -20℃~+70℃(common); -20℃~+105℃(hot water)

• Maximum altitude: 1000 meters

• Maximum ambient temperature: +40℃

• Maximum suction lift: depending on the pump NPSH (cavitation allowance) , medium temperature, installation location, sea level and the import pipeline loss and other factors.

• Maximum inlet pressure: limited by the maximum working pressure.
